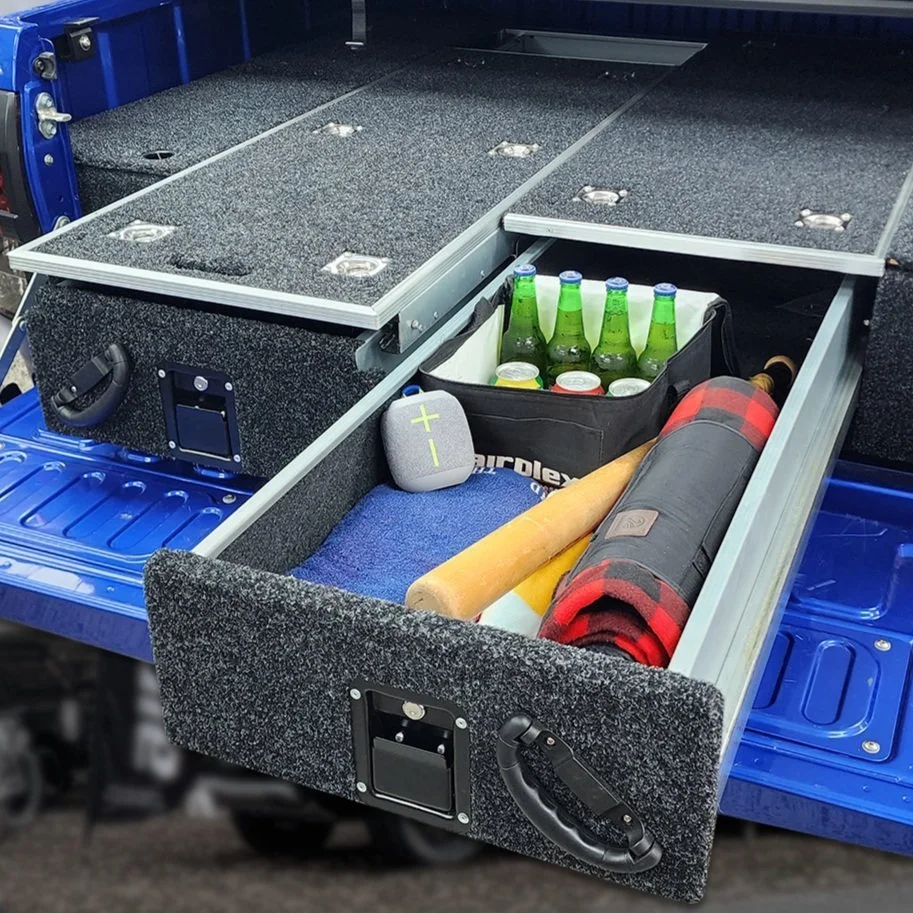

Airplex Drawers & Bed Slides

Airplex Drawers come in 2 different sizes with fill/wing kits as an optional extra.

Both drawer options have a maximum capacity of 100 KG per drawer and are key-lockable. These are universal fit drawers so please check the dimensions below or get in touch to learn more. For extra security add a tailgate central locking kit!

  • For this unit both of the top pieces slide as well as the drawers. Total drawer travel 870mm

    External dimensions: 1380mm x 1000mm x 230mm

    Internal Dimensions: 1270mm x 410mm x 135mm

  • For this unit only the Left Hand side top piece slides. total travel for the drawer 800mm

    External Dimensions: 1300mm x 1000mm x 285mm

    Internal Dimensions: 1240mm x 425mm x 180mm

Drawer 1300 Installed with optional wing kit

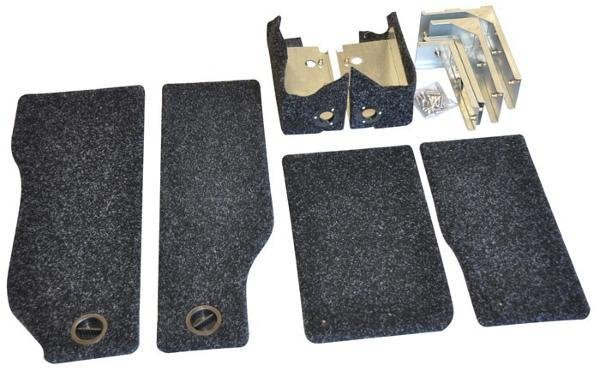

1380 Wing kit (Optional)

Load Slides are a handy way of loading your gear into your ute and also getting it out! Our Bed Slides are all universal fit so please check the dimensions below to ensure this will fit.

  • - Easy to install

    - Strong construction

    - Heavy Duty 400kg load rated

    - Approx 1000mm travel (total slide movement)

    - Quick-Grip non skid top on platform

    - Smooth running bearings

    - Locks at three locations. In out and midway.

    - Installation hardware supplied

    - Strong up stand sides

    - Tie-down loops provided to secure your load to the tray

    - L 1410mm x W 1250mm x H 180mm

    - Easy to install by bolting to the floor of your ute deck

    - height from mounting floor to the top of the tray area = approx 110mm

  • - Easy to install

    - Strong construction

    - 250kg load rated

    - Quick-Grip non skid top on platform

    - Smooth running bearings

    - Locks at three locations. In out and midway.

    - Total slide movement 770mm

    - Installation hardware supplied

    - Strong upstand sides

    - Tie-down loops provided to secure your load to the tray

    - Heavy Duty

    - 1410mm x 1230mm tray

    - Total height approx 190mm.

    - Height to loading part of tray approx 120mm

  • - Easy to install

    - Strong construction

    - Smooth running bearings

    - Locks at three locations. In out and midway.

    - Total slide movement 700mm

    - Installation hardware supplied

    - Dimensions: 1270mm x 1270mm

    - Tie-down loops provided to secure your load to the tray

BS197 installed in Next-gen Ranger with SmartCAP

BS198P Installed
